    FrSky XM

    FrSky XM

    Ultra light SBUS non-telemetric receiver ideal for small copters.

    Recipient :

    * Required fields

      or  Cancel



  • FrSky XM

    XM

    New product

    Ultra light SBUS non-telemetric receiver ideal for small copters.

    More details

    10+ Items

    Price without tax 248 Kč

    Price with tax248 Kč


    An overview of the FrSky receivers here .

    Features:

    • 15 regular feeds, 16 RSSI feeds, all from SBUS only
    • Antenna Connected
    • RSSI output

    Specifications:

    • channels: 16 (SBUS only, 15k + 16k RSSI)

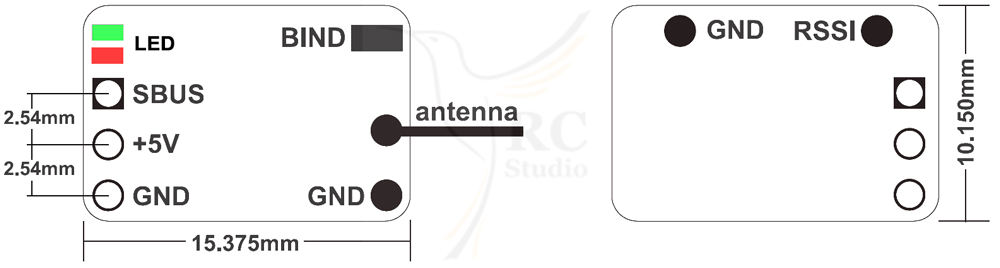

    • Dimensions: 15mm x 10mm x 3.5mm
    • Weight: 1g
    • antennas: rod 150 mm
    • antennas connected by connectors: yes Ipex4
    • RSSI output: analog (0-3.3V)
    • S.Port: no
    • SBUS: yes
    • analog port: no
    • pin voltage measurement: no
    • Voltage: 3.5-10V
    • Power consumption: 20 mA @ 5 V
    • Range:> 600m
    • updatable firmware
    • compatibility: D16 LBT mode


    Pairing

    Put the transmitter in pairing mode. Press and hold the F / S button, bring in the power, wait 2-4 seconds. Successful pairing is accompanied by a green LED and red flashes. Disconnect the power supply and release the button. If this fails, try the process again, but increase the space between the transmitter and the receiver to 1-2 m.

    LED Indication

    in progress
    LED Meaning
    red flashes slowly is not a signal
    green connected, paired, data transfer
    green on, red fast flashing pairing
    green flashes twice failsafe save confirmation

    Failsafe

    A very important feature of the X-Series receivers is the failsafe mode, which allows the model to be set to the desired mode in the event of a power failure.

    Receiver Setup

    Pair the receiver. Set the channels to the desired position, briefly press the F / S button (for less than 1 second). The green LED flashes twice to confirm. To deactivate the filesafe function, pair the receiver again.
    To set the pulses to be lost when signal is lost - turn off the transmitter and start the receiver, briefly press the F / S button (for less than 1 second).

    Transmitter settings
    In addition to several failsafe modes, Taranis can also be set to completely individual filesafe via the transmitter - custom . This is then automatically sent to the receiver in 9 second cycles.


    If failsafe is not set, the receiver holds the last channel position before signal loss. You can reset the failsafe factory settings by pairing the receiver



    On all items we offer warranry 24 months.
    Spare parts and battries capacity 6 months.






    We provide warranty and post warranty services.







    www.asekol.cz.

    Original manual in PDF
