FrSky TFR6

TFR6

New product

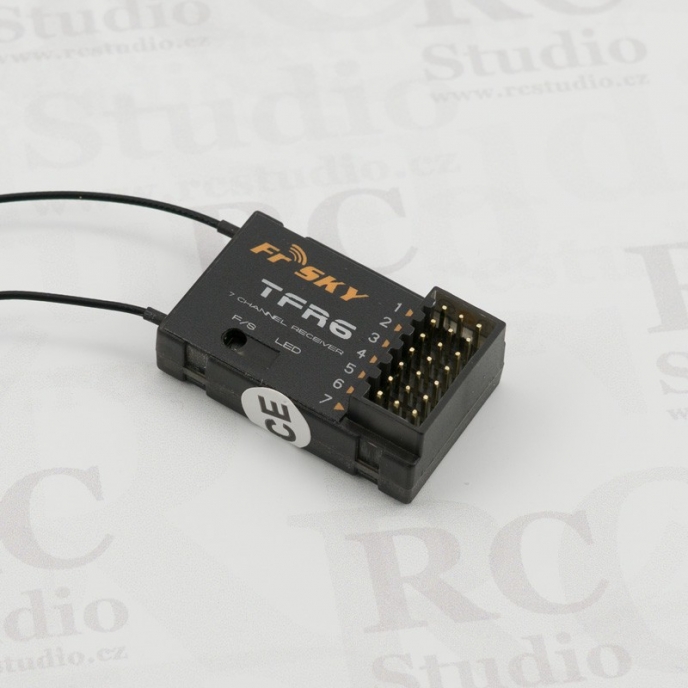

The FrSky TFR6A is a 7-channel Futaba FASST compatible receiver

More details

This product is no longer in stock

Price without tax 628 Kč

Price with tax628 Kč

Including 0 Kč for ecotax

In stock FW 2015

Features:

  • Two ways to set up failsafe - transceiver
  • Channel pins are straight
  • light and small

Specifications:

  • 7 channels
  • working voltage: 3.5-10 V
  • Temperature: -10 to 60 ℃
  • Dimensions: 37 mm × 22 mm × 8 mm
  • Weight: 7.8g
  • Compatibility: FASST 2.4G Air Systems (7CH Mode / Multi Mode): 6EX, 7C, TM-7, TM-8, T8FG, T10C, TM-10, T10CG, T12Z, T12FG etc.

Pairing

To pair, hold the F / S button and connect the power to the receiver. When the red LED goes out and the green LED is on, pairing is completed.

Failsafe

The receiver supports two kinds of filesafe:

  • Broadcast

If the filesafe in the transmitter is not turned off, the receiver will use its settings.

  • Custom Failsafe Settings on All Channels

Pair the receiver and turn off the filesafe in the transmitter. Set the channels to the desired positions, briefly press the F / S button, and the green LED will blink twice to indicate that filesafe values ​​are stored in the receiver.

To cancel custom fileafe settings, you need to pair the receiver again.

The LED

Red LED Green LED Meaning
off is lit normal mode
is lit is lit is waiting for pairing
flashes is lit signal loss
will blinks twice save filesafe
