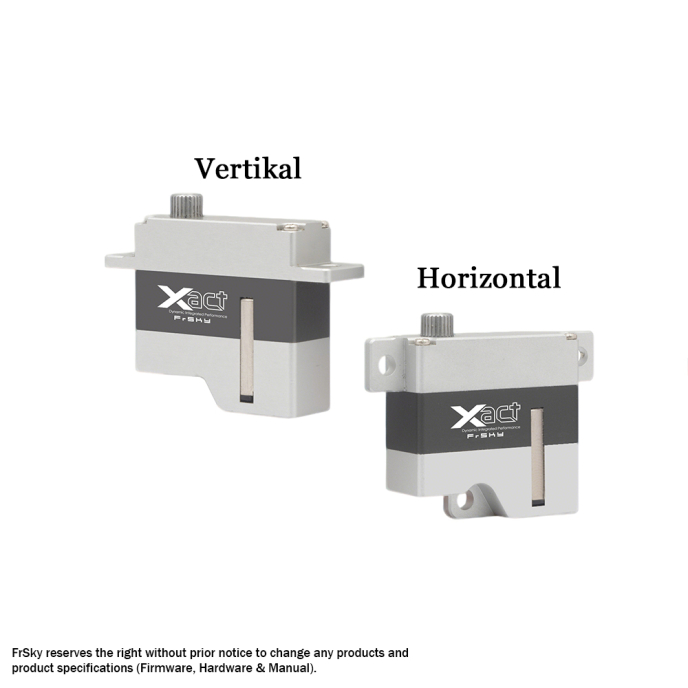

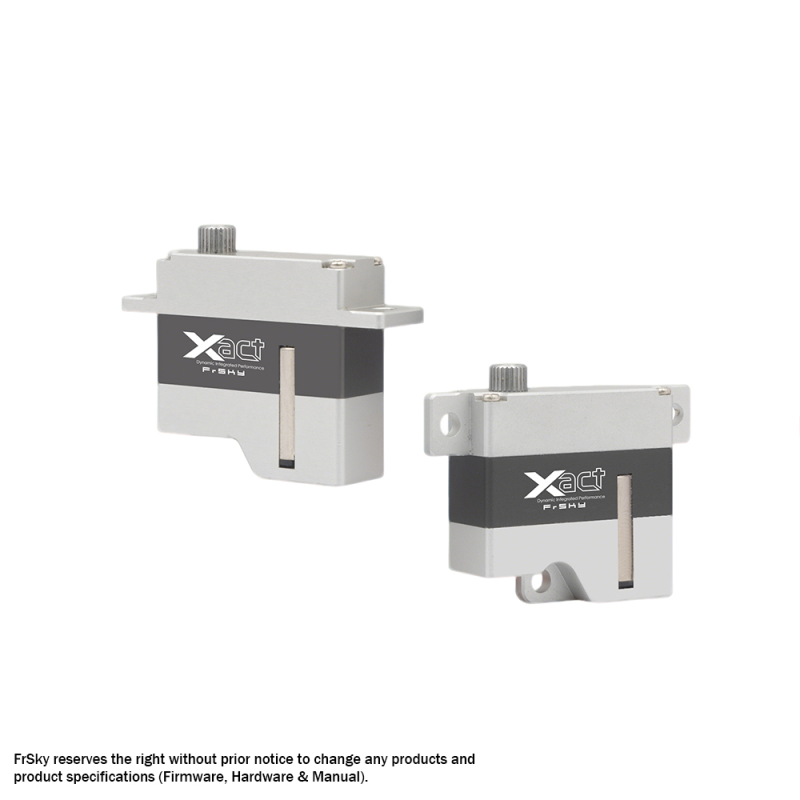

FrSky Xact SG5101H horisontal
SG5101HH
New product
Miniature digital servo operating in F.Port2 / SBUS and PWM modes. It allows a power supply of up to 8.4 V and the potentiometer ensures accuracy. The whole body is made of aluminum with metal gears and two bearings. The servo is telemetric, adjustable and has updatable firmware.
5+ Items
Properties:
- Supports FBUS, SBUS and PWM protocol
- High durability with metal gear and all-aluminum CNC machined protective case
- 8.4V high voltage capable operation with good speed performance
- Built-in dual precision balls bearing with hall sensor
- Supports over-current and over-hot monitor and alarm
- Updatable firmware ensures the performance superior
- Compatible with specific IDS (Integrated Drive System) kit (Optional)
Specifications:

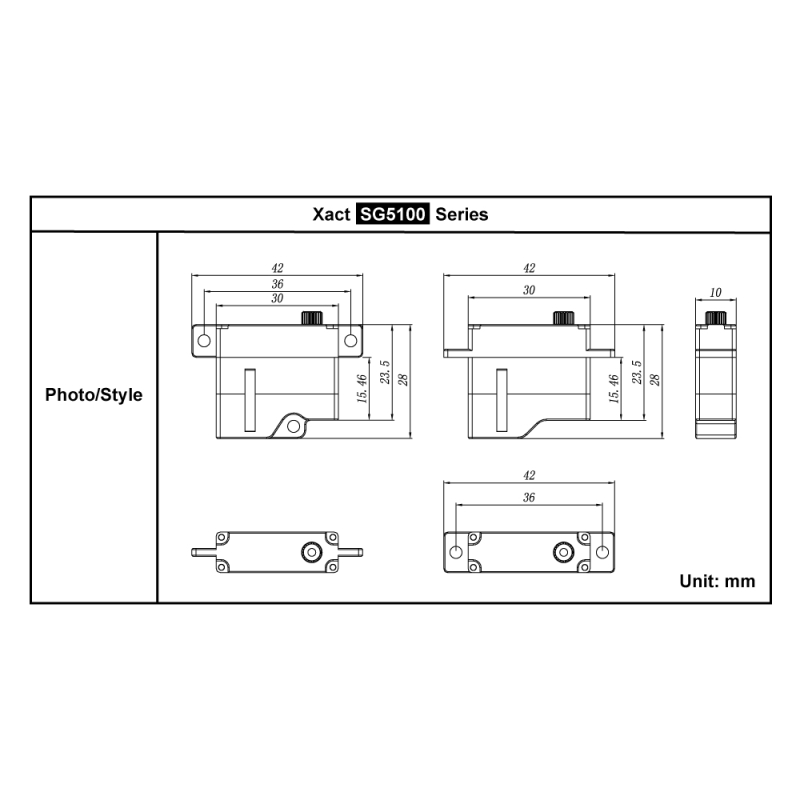

- Dimensions: 30 mm × 10 mm × 28 mm
- Weight: 22 g
- voltage: 4.8 - 8.4 V
- max. frequency: 1520us/333Hz and 760us/700Hz
- tooth: 5 mm 25T
Speed and strength
| 6 V | 7,4 V | 8,4 V |
| 0.14 sec/60° | 0.11 sec/60° | 0.10 sec/60° |
| 15 kgf.cm | 18 kgf.cm | 19 kgf.cm |
| Servo size | Sub-Micro 8-16g |
