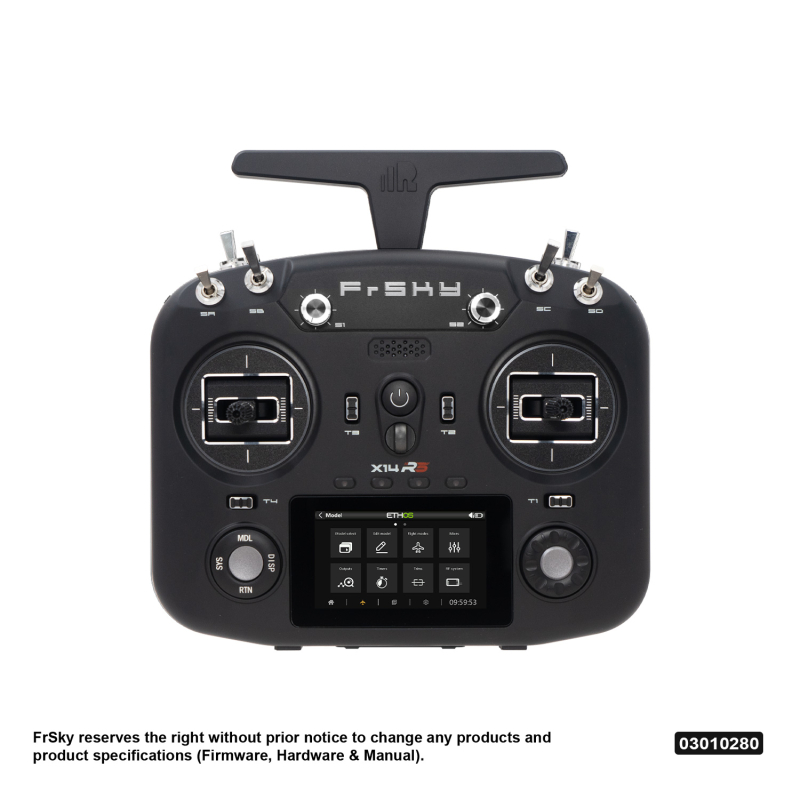

FrSky TWiN X14RS Black
X14RS-Black
New product
The X14RS elevates the compact X14 to premium status. Key upgrades include the TD-ISRM RS dual-band module (2.4GHz & 900MHz), high-end MC18 all-CNC gimbals, a 3-inch touch screen, 512MB memory, and a 6-axis gyro. It keeps the original compact size and 2600mAh battery.
Preorders
Clear table of FrSky radios here .
S variant contain gyro, better gimballs, bigger internal flash memory
ETHOS
The newly developed successor to FrSky-OS allows easy setup using templates, as well as free programming using free mixes. We are preparing a full localization for the system. More in our forum www.frsky-forum.cz
Together with the purchased radio, our clients will receive printed handbook , which is an abbreviated guide that summarizes the basic information needed to operate, charge, and operate the device. The manual is also available in the electronic data repository of our e-shop. Full versions of Horus radio manuals are also provided to clients via a data repository in PDF format. You will be informed by e-mail about the update of electronic versions of the manuals. Manual details here .
Properties:
- Internal TD-ISRM RS module (Dual-Band 900M/2.4 GHz)
- 2.4 GHz ACCESS and 900 MHz ACCESS R9
- TWiN 2.4 GHz and TD Dual-Band mode
- Integrated antennas for 2.4 GHz and 900 MHz
- SWR and antenna system error detection
- Voice output
- 3" color TFT touch screen with a resolution of 640 x 360 pixels
- Telemetry logging
- 512 MB internal flash memory
- SD / TF card slot
- MC18 all-CNC gimbals with 10 bearings and non-slip M4 stick ends
- High-precision Hall sensors with adjustable travel (45° / 60°)
- Trims - Adjustable from coarse to extra fine
- 4 mode selection buttons, 2 potentiometers, 2 sliders
- 6 three-position and 2 momentary switches
- 3 timers, counting or subtracting, % gas, reading and counting time by voice
- Integrated 6-axis gyroscope / Unique lock identification
- High-speed PARA wireless training system (teacher / student)
- Free bay for external module type FrSky Lite
- 3.5 mm jack training connector
- Vibration response with adjustable intensity
- USB-C for PC connection and charging
- S.Port programming connector
- 2.4 GHz ACCST D16
Specifications:
- Model Name: X14RS
- Up to 24 channels
- Module: TD-ISRM RS
- Dimensions: 192x193x72 mm
- External antenna connector: no
- Transmitting power: 100 mW
- Consumption: 440 mA typ. at 7.4 V
- Weight: 703 g (including battery)
- Working temperature: - 10-60 ℃
- Recommended USB-C charging: 5 V (+ -200 mV), 2 A
- LCD screen: 3" touch, 640 x 360 pixels
- Model memory: 60 (expandable to SD card)
- Receiver compatibility: ACCST D16, ACCESS, TW and TD modes
Package Contents:
- X14RS radio
- 2,600 mAh Li-Ion battery
- USB cable
- neck strap
| Mode | Mode 2 |
| Package | Paper Box |
| Speciální edice | Ne |
| Sale | Ne |
On all items we offer warranry 24 months.
Spare parts and battries capacity 6 months.
We provide warranty and post warranty services.
